Stainless Steel: TDSS Series
Chemically Resistant 316 Stainless Steel - virtually indestructible and maintenance free for corrosive atmospheres, high temperatures or even explosion proof locations!

Simple construction has no gaskets or seals. Also ideal for sanitary "wash down", holding, evacuation and high purity applications. Vacuum levels to 25.4"Hg.

Stainless Steel TD Generator

When choosing from the chart below:
"M" Generators produce MEDIUM vacuum levels with lower air usage
"L" Generators produce LOW vacuum levels with very low air usage

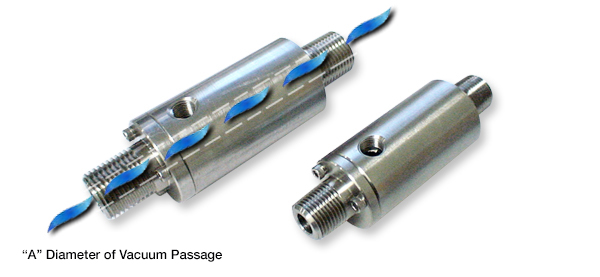

"A" diameter indicates the size of the straight through vacuum passage.

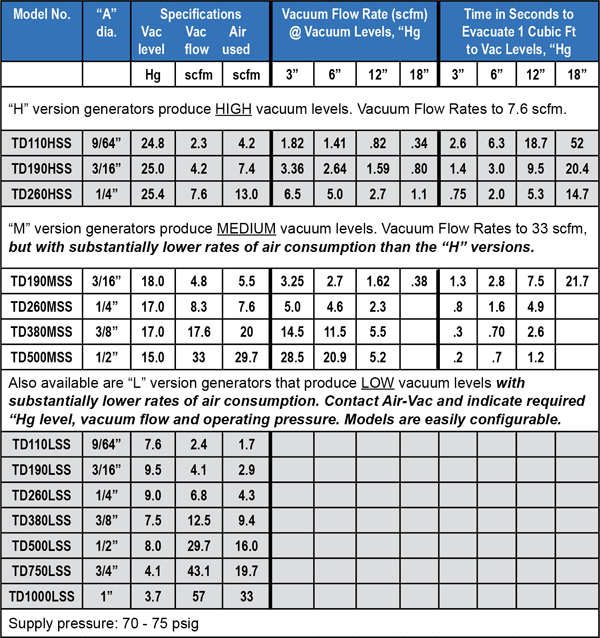

TDSS Data Chart


Full Dimensions

TDSS Series

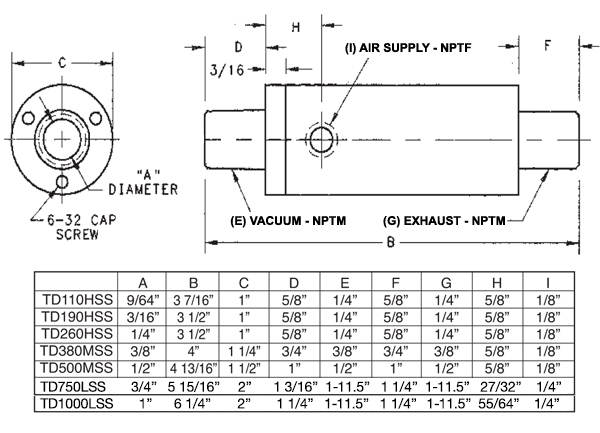

TDSS Dimensions




How TD Series Works
Compressed air flows through a small annular opening to generate a high velocity. This air expands into an unobstructed vacuum passage allowing solid material to flow through the pump with no decrease in vacuum flow.

Performance Considerations
for Minimal Air Usage

Vacuum Levels
Depends on the application,
High, Medium, or Low:

• Select an H Model when
maximum vacuum level is
required, 25-28"Hg

When lower vacuum levels
satisfy the requirement:

• Select an M Model for 15-20"Hg
• Select an L Model for 8-12"Hg

This results in a substantial reduction in air usage.

Vacuum Flow
Substantial vacuum flow is developed at low operating pressures when using
Models H, M or L.

• Initially the curves are very steep.
The operating pressure at 40-50 psi
provides maximum vacuum flow.

• Higher pressures do not increase the vacuum flow but will increase
air usage.

• Paper Feeding Systems
• Printing Presses
• Vacuum Chucks
• Photoprocessing
• Sheet Metal Lifters
• Packaging Machinery
• Food Processing Machinery
• Air Sampling
• Dental Equipment
• Gas and Liquid Mixing
• Air Cooling
• Wire Wiping
• Thread Removal in Textiles
• Disposal of Paper Cuttings
• Loose Scrap Removal in Dies

3D CAD Models
> TDSS 3D Step
